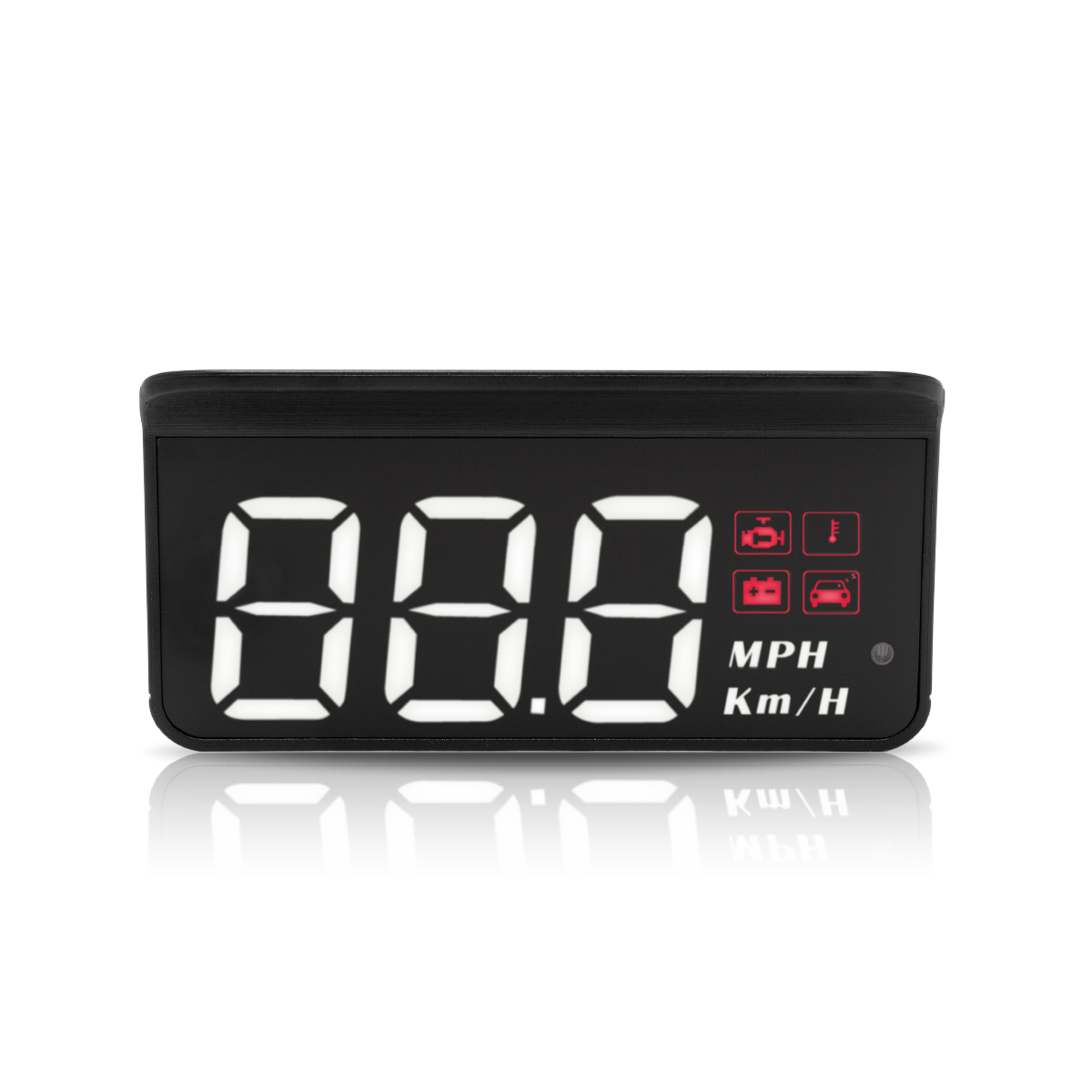

Codebreaker OBD2 HUD

Rating:
100 % of 100
$55.00
USD
In stock
MPN
CB007

Heads up! Keep eyes on the road thanks to the Codebreaker OBD2 HUD system.

Features:

• Speedometer
• RPM Alarm
• Over Speed Alarm
• Water Temp. Meter & Alarm
• Voltage Meter & Alarm
• Fatigue Driving Reminder
• Auto & Manual Adjusting Brightness

Have any questions? (281) 656 8692
Codebreaker OBD2 HUD
$55.00
USD

Tutorial

Codebreaker OBD2 HUD

Project vital information into field of view while driving.

Speedometer

The speedometer function projects the vehicle's speed and features an adjustment range of 50-150 to calibrate the system against a corrected GPS value.

Water Temp. Meter

The Water Temp. function presents the readout numerically instead of the traditional quartered gauge, providing a more accurate read on vehicle vitals.

Voltage Meter

The Voltage function offers quick access to monitor a battery's health.

Alarms

Set alarms to notify you when limits are exceeded for vehicle Speed, RPM, Water Temp., and Voltage.

Adjustable Brightness

OBD2 HUD features a light sensor to either automatically adjust projection visibility, depending on the environment, or manually adjust brightness at user discretion.

Details

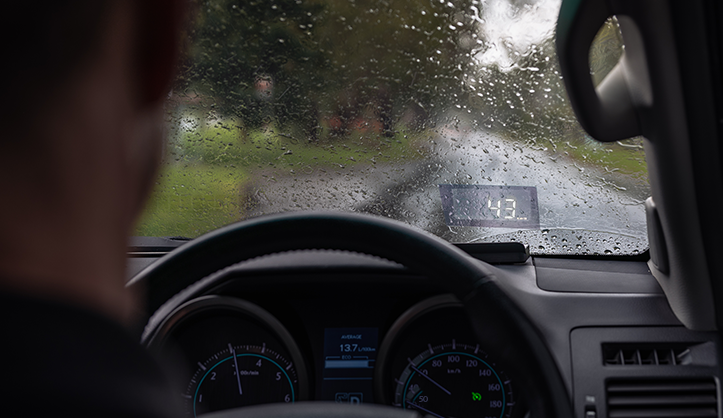

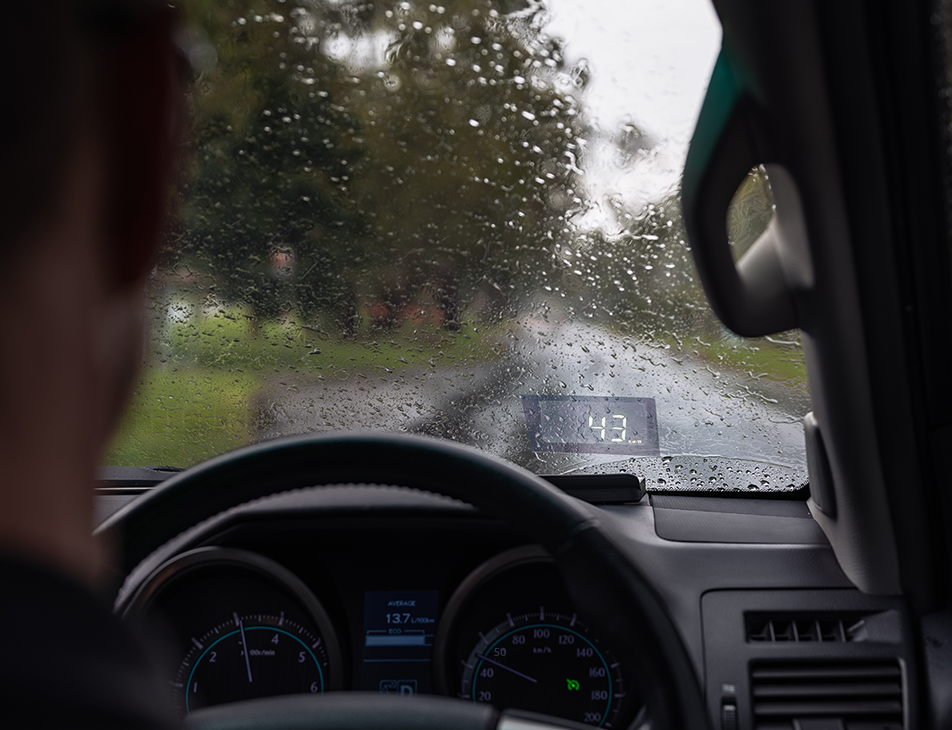

Codebreaker Head Up Display systems, HUD, assist in monitoring vital parameters, such as speed, by projecting information onto a reflective pad, placed by the user in a convenient spot on the windscreen. With the information displayed higher up, it is easier to concentrate on the road ahead.



Compatible with OBD2/EOBD compliant vehicles (most vehicles manufactured in AU & NZ since 2007).

In the United States, OBD2 became compulsory in January 1996.



Features:
  • Speedometer & Alarm
  • RPM Alarm
  • Water Temp. Meter & Alarm
  • Voltage Meter & Alarm
  • Fatigue Driving Reminder
  • Adjustable Brightness



Specifications:

• Connection: OBD2 port (Plug & Play)
• Back Light Colour: White & Red
• Material: ABS
• Screen Size: 3.5"
• Operating Voltage: ≤ 5V
• Dimensions: 86 x 37 x 16mm
• Product Weight: 50g
• Packaging Dimensions: 125 x 85 x 44mm
• Packaged Weight: 150g



Product Documents:
