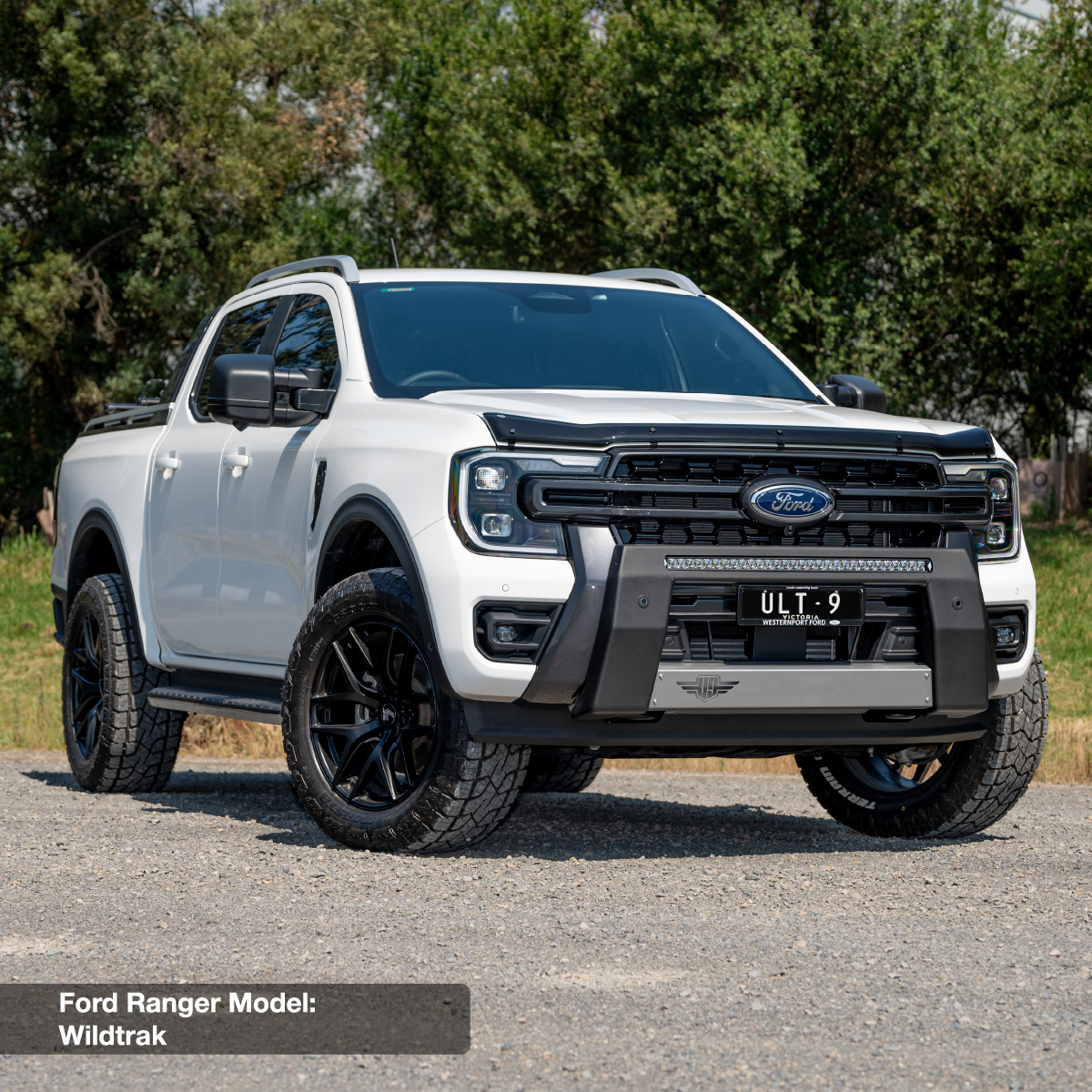

The Ultimate Nudge Bar to suit Ford Ranger Wildtrak (2022 - ON, 2nd Gen T6)

$1,495.00
AUD
In stock
MPN
ULTN05020

A protective barrier to complement modern vehicle styling.

Features:

• Designed, Engineered & Manufactured in Australia
• ADR Compliant
• Airbag Compatible
• Steel Construction
• Zinc Plated & Powder Coated
• Lightweight
• Ultimate9 LED Light Bar 30"

Have any questions? (03) 9729 8515
The Ultimate Nudge Bar to suit Ford Ranger Wildtrak (2022 - ON, 2nd Gen T6)
$1,495.00
AUD

Tutorial

Ultimate9 Nudge Bars

Designed, Engineered, & Manufactured in Australia with Australian Steel.

Steel Construction

Manufactured with 100% Australian-made, 3mm steel for a rigid design.

Form-Fitting

Designed with modern vehicle styling in mind, contouring to the vehicle for minimal forward projection.

Integrated Light Bar

Bundled with an Ultimate9 LED Light Bar that nestles behind the front face with access holes for adjustment.

Coating

Zinc-plated for corrosion protection & powder coated with Dulux Mannex Black textured powder coat with a Silver Pearl coated centre pan.

Accessory Provision

Laser-cut points are provided for attaching accessories such as communication antennas and additional Ultimate9 LED Light Bars, whenever possible.

ADR Compliant & Airbag Compatible

Designed to meet ADR standards and tested for airbag compatibility.

Details

Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.

Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.

Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.

Finished in a Black textured powder coat with a Silver coated centre pan for corrosion protection and a modern feel.



Compatibility:

Suits the following Ranger variants:

  • Wildtrak
Features:
  • Australian-made: Designed, engineered, and manufactured in Australia.
  • Steel Frame: 100% Australian-made steel.
  • Airbag Compatible: Tested for airbag compatibility
  • ADR Compliant: Designed to meet ADR standards.
  • Low Profile: Over bumper design with minimal forward projection
  • LED Lighting: Includes an Ultimate9 LED Light Bar 30"
  • Lightweight: Weighing under 30Kg with included light bar
  • Corrosion Protected: Zinc-plated.
  • Finish: Black textured powder coat & silver coated centre pan



Kit Includes:
Models with upfitter

• Nudge Bar
• Ultimate9 LED Light Bar 30"
• DTP Connector Kit
• Parking Sensor Extension Looms
• Parking Sensor Holders
• Parking Sensor Blanking Plates
• Slimline Number Plate Mount
• Installation Hardware
• Instructions

Models without upfitter

• Nudge Bar
• Ultimate9 LED Light Bar 30"
• Ultimate9 Auxiliary Loom Twin Output Connector
• Illuminated Rocker Switch
• High Beam Adaptor
• Parking Sensor Extension Looms
• Parking Sensor Holders
• Parking Sensor Blanking Plates
• Slimline Number Plate Mount
• Installation Hardware
• Instructions

Fitment of our products

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut pretium pretium tempor. Ut eget imperdiet neque. In volutpat ante semper diam molestie, et aliquam erat laoreet. Sed sit amet arcu aliquet, molestie justo at, auctor nunc.

Optional Lighting:

The Ultimate Nudge Bar to suit Ford Ranger Wildtrak (2022 - ON, 2nd Gen T6) includes provision to fit the below additional light bars:

Ultimate9 LED Light Bar 26" - Installs above included light bar
Ultimate9 LED Light Bar 20" - Installs below included light bar (without front camera)

Note: When adding more than two additional light bars, the below harness is required.

Required Harness:

Ultimate9 Auxiliary Loom Twin Output Connector



Specifications:

• Material (nudge bar): 3mm steel
• Material (centre pan): 1.6mm steel
• Material (mounts): 6mm steel
• Protective coat: Zinc Plated
• Finish Coat (nudge bar): Black textured Powder Coat
• Finish Coat (centre pan): Silver Powder Coat
• ADR Compliant
• Airbag Compatible
• Dimensions: (L) x (W) x (H)
• Weight: < 30Kg



Overhead Console (Upfitter)

Our included DTP connector kit makes it a breeze to hook up the integrated light bar and control it with switch #6 for models equipped with the overhead auxiliary switch panel.



Illuminate your adventure.

Reviews

Write Your Own Review
You're reviewing:The Ultimate Nudge Bar to suit Ford Ranger Wildtrak (2022 - ON, 2nd Gen T6)
Your Rating

Faqs

The Ultimate Nudge Bar Frequently Asked Questions

What is the warranty?

Ultimate9 provides the original purchaser, with a 12-month warranty against manufacturing faults.

Do they accommodate my car's safety features?

Yes. The Ultimate Nudge Bar is designed and engineered to accommodate applicable OE vehicle safety features for specific vehicles. This includes radar, front cameras, and parking sensors.

Are the nudge bars airbag compatible?

Yes. The Ultimate Nudge Bar has been through rigorous testing and development to make sure all nudge bars comply with current Australian safety standards making the nudge bars airbag-compatible and ADR-compliant

How heavy is the bar?

Weighing in at under 30kgs, there’s plenty of capacity for other essential automotive accessories or cargo without overloading your vehicle’s GVM.

Do I need to cut the factory bumper to fit the bar?

The majority of The Ultimate Nudge Bar range, a bumper cut is not necessary. Both Nissan Patrol variants (Ti & Ti-L) a minor bumper cut is necessary for fitment. For more information, please give us a call.

Where are they made?

The Ultimate Nudge Bar is proudly Australian-designed, engineered and manufactured using Australian-made steel.

How do I find out if you make one for my car?

If you can’t find The Ultimate Nudge Bar compatible with your vehicle in our range, please register your interest alongside the vehicle application you're interested (reword) in below to help our R&D team prioritise.

Will adding The Ultimate Nudge Bar affect the new car warranty?

No. Your new car warranty will only ever impacted if it is deemed said product has caused the issue that you are seeking a warranty on - the same applies to any other aftermarket accessory fitted to a vehicle.

Can I fit the bar myself?

Yes. Our comprehensive fitting instructions make installation a breeze with clear step-by-step illustrations and wording.
