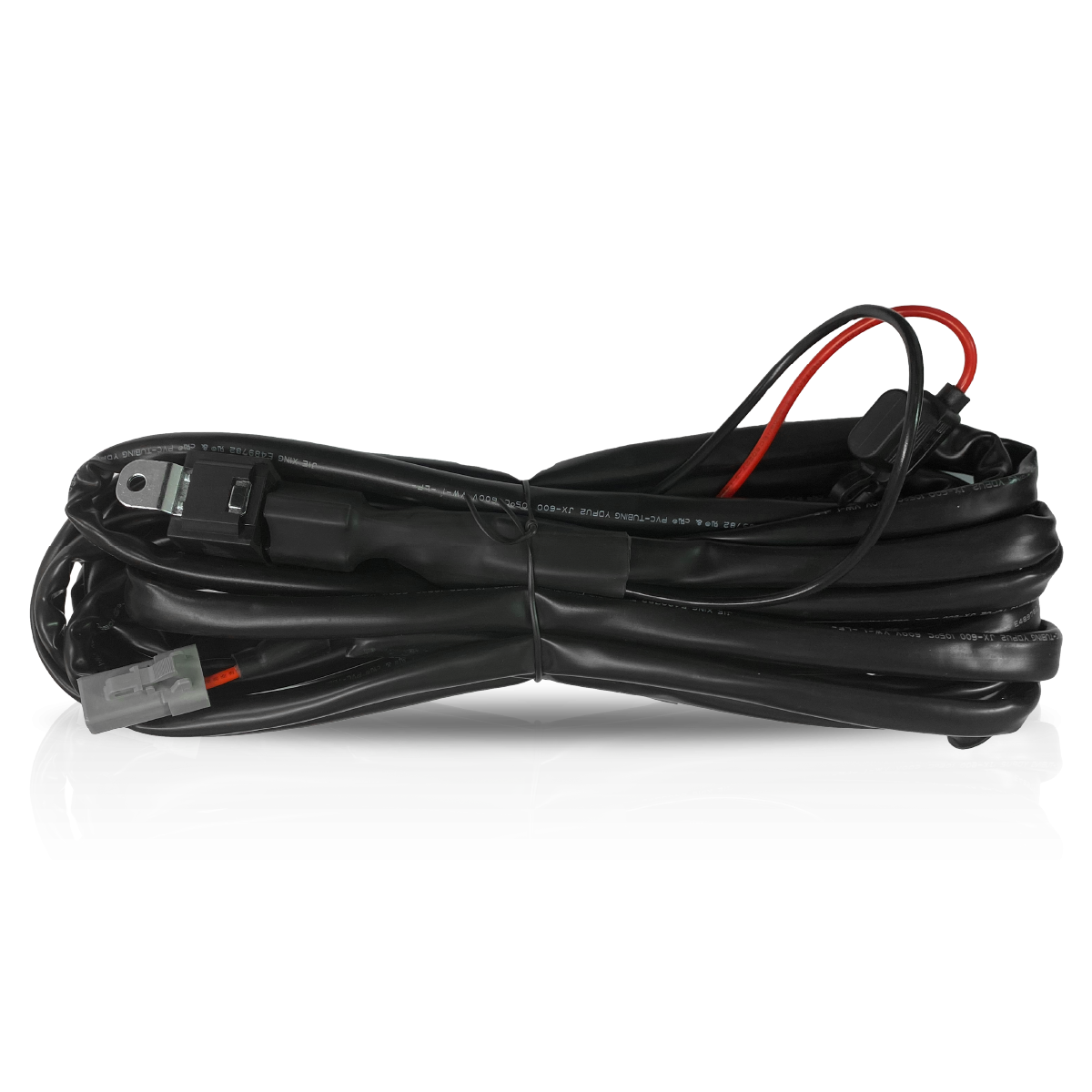

Ultimate9 Auxiliary Loom Single Output Connector

Special Price $35.00 Regular Price $69.95
In stock

Power your 40" & 50" Ultimate9 LED Light Bars


• Single DTP Output Connector
• HB3 & H4 Piggyback Adaptor
• Illuminated Round Rocker Switch

Have any questions? (03) 9729 8515
Ultimate9 Auxiliary Loom Single Output Connector


Plug & Power - wire up your new Ultimate9 LED Light Bar.

Our Auxiliary Light Harness brings plug & play fitment to your new Ultimate9 LED Light Bar that triggers with the activation of High Beam.

With HB3 & H4 piggyback adaptors included, the harness connects directly into your headlight loom and isolates with a dash mounted illuminated rocker switch.

Don't want your Bars turned on? Simply flick the rocker switch off.

40" & 50" Bars, suited to roof installations, use our Single Output DTP auxiliary light harness - with a larger DTP connector & thicker AWG wire to ensure no voltage drop.

Please note: This loom is only compatible with our 40" & 50" LED Light Bars. For 20", 26", or 30" Bars, please visit this link [Click Here]


  • Sing output DTP Connector: Capable of powering 1 Ultimate9 40" or 50" LED Light Bar
  • Plug & Play: Connects straight into headlight loom for control
  • Piggyback Adaptors Included: 1x H4 & HB3 headlight adaptor included with harness
  • Illuminated Rocker Switch: Isolates the light for more control when High Beam is on and Light Bar is not wanted



Connector Type: x1 Sealed DTP Plugs | Single Output
Relay Rating: 12vDC 40A
Fuse Rating: 30A Single
Wire Rating: 105°C
Max Load: 30A@12v
Switch: Illuminated Round Rocker Switch
Adaptors: Includes 1x H4 & 1x HB3 Piggyback Adaptors
Instructions: Included

Harness Dimensions
Relay ~ Power Terminals: ≈ 450mm
Relay ~ Headlight Pickup: ≈ 1300mm
Relay ~ DT Connectors: ≈ 2500mm
Relay ~ Rocker Switch: ≈ 3500mm
