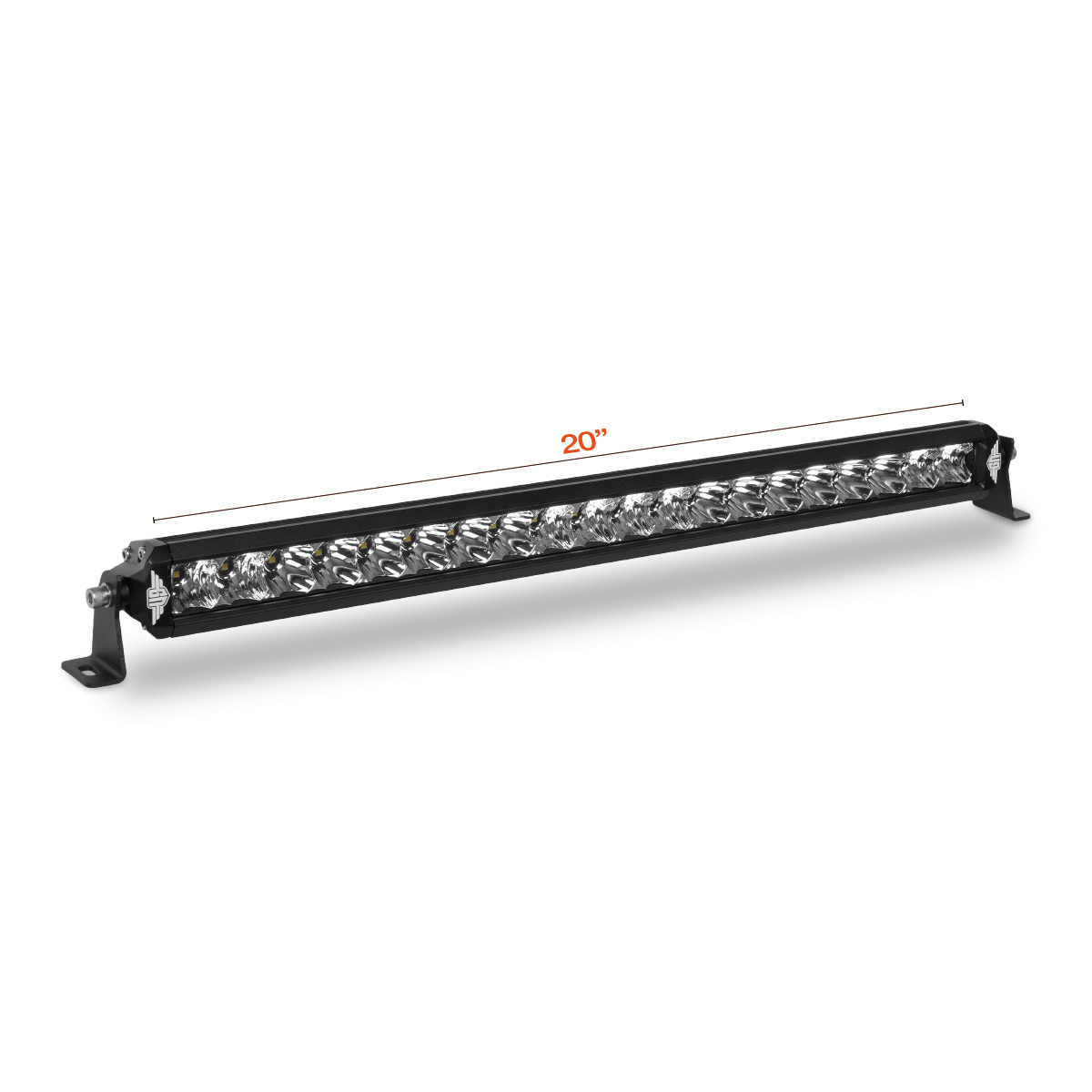

Ultimate9 LED Light Bar 20"

Rating:
100 % of 100
$179.95
AUD
In stock
MPN
ULTLED20C

Expose the darkest of nights with our Ultimate9® LED Light Bars.

Features:

• 20, 26, 30, 40, & 50" Size Range
• Ingress Protection Rating of IP68/IP69K
• GE Lexan® Polycarbonate Lens
• Gore® PolyVent Breather
• DuPont® Coated, 6063 Aluminium Housing
• 50,000 Hour Lifespan

Harnesses available separately *

Have any questions? (03) 9729 8515
Ultimate9 LED Light Bar 20"
$179.95
AUD

Tutorial

LED Light Bars

With 5 sizes to choose from, the Ultimate9 LED Light Bars are an affordable lighting solution with market-leading features & performance.

Water & Dust Protected

To protect internal circuitry from damage that arises from moisture & dust ingress, Ultimate9 LED Light Bars are tested to ensure they meet the highest IP rating - IP68 & IP69K

Ventilated

Although sealed, LED Bars also need to breathe to relieve pressure build-up as the light heats & cools. Utilising a Gore® PolyVent ensures internal pressure can equalise to prevent seal failure & moister/dust ingress - eliminating lens condensation & fogging.

Coating

While aluminium anodised surface coatings are corrosion-resistant over time, they fade from UV damage. DuPont® Polymer powder coats instead provide much higher UV & corrosion resistance and remain their chosen colour longer.

Lens

Lexan®, used for its strength in well-known products such as astronaut helmet visors, bulletproof glass, fighter jet canopies, ballistic eyewear, replaces glass and plastic lenses. UV, scratch and impact-resistant, Lexan®s ability to mould into complex shapes help form hardened, optically clear lenses for superior performance.

Optics

For improved visibility in changing conditions and environments, a combination of flood and spot reflector optic patterns offer both wide-angled and long spread illumination.

Tested & Certified

IP, vibration, UV, corrosions, RoHS, temperature exposure, impact, and EMC tests ensure Ultimate9 LED Light Bars exceed operational conditions and electrical standards for longevity & legal fitment.

Details

Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.



Features:
  • Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
    IP68 for long term submersion and total dust ingress.
    IP69K for stream jet cleaning.
  • Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
  • Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
  • Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
  • Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
  • Technology: Grade A Osram 5W LED chips & sealed DT connectors.



Kit Includes:

• LED Light Bar
• Side-Mount Brackets & Hardware

Harnesses available separately*



What Harness Do I Need?*

Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise our Twin Output Harness.



Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.



Specifications:
  • Input Power: 9-36V
  • Beam Pattern: Flood & Spot Combination
  • Beam Spread: 8° Spot & 20° Flood
  • Power: 100W
  • Current Draw: 6.6A @ 13.2V
  • Raw Lumen: 9,520 lm
  • Effective Lumen: 5,015 lm
  • Beam @ 1 Lux: 528m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: 6063 Aluminium
  • Housing Coating: DuPont®
  • Lens Material: GE Lexan® Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Gore® PolyVent
  • Weight: 1.68Kg
  • Body Dimensions: (L)560 x (H)46 x (W)49mm
  • Lens Dimensions: 20" (508mm)
  • Connector Type: DT Sealed
  • Operating Temp: -40ºC - 145ºC
  • Certification: CE, RoHS, RCM

Required Harness: Ultimate9 Twin Output Harness
