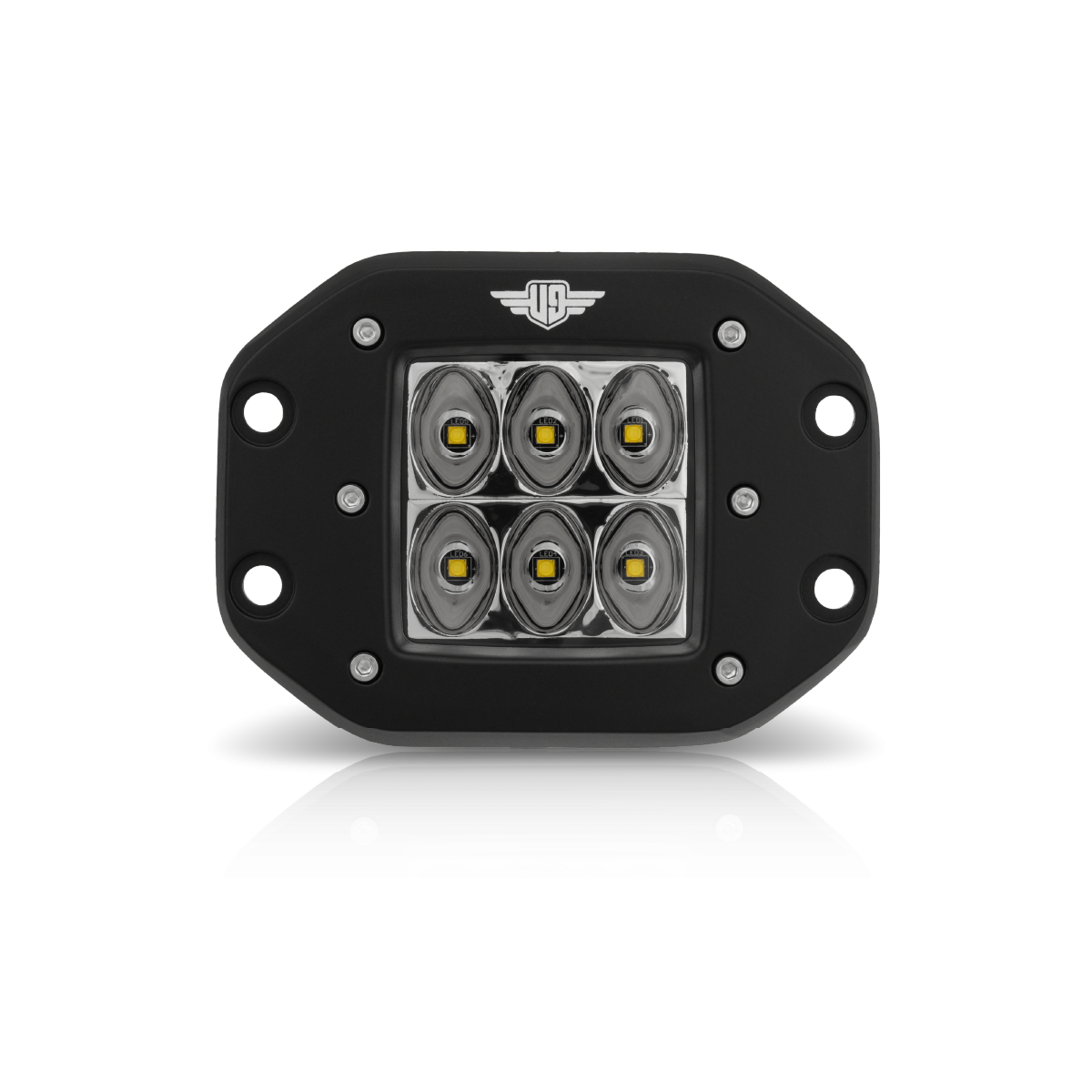

Ultimate9 LED Work Lamp: Flush Mount

$89.95
AUD
In stock
MPN
ULTLEDWL020

Brilliant performance projected in a driving beam pattern.

Features:

• Driving Beam Pattern
• 6 x Osram Grade A 5W LED Chips
• Ingress Protection Rating of IP68/IP69K
• GE Lexan® Polycarbonate Lens
• Military Grade Breather
• DuPont® Coated, Die Cast Aluminium Housing

Have any questions? (03) 9729 8515
Ultimate9 LED Work Lamp: Flush Mount
$89.95
AUD

Details

For a clean and factory looking build, it's hard to look past flush mount lights - enter the Ultimate9 Work Lamp: Flush Mount.

With x6 Osram 5W LED chips, a driving pattern reflector, and a Lexan® Polycarbonate lens - the Flush Work Light will cast a clean beam of light, reaching 1 Lux at 89m. Paired well with bull bars & nudge bars to uncover terrain immediately approaching while keeping a tidy finish.

Tested to meet the highest waterproof ratings, a 6063 grade aluminium housing and military grade breather allow wider & greater heat dissipation - improving longevity.



Features:
  • Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
    IP68 for term-long submersion and total dust ingress.
    IP69K for stream jet cleaning.
  • Ventilation: Military grade breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
  • Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.
  • Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
  • Optics: Driving Beam Pattern.
  • Technology: 6x Grade A Osram 5W LED chips & sealed DT connectors.



What Harness Do I Need?

Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can be utilised - see link below.

Twin Output Harness



Kit Includes:

• Work Lamp: Flush Mount
• 304 Stainless Steel fasteners
• Rubber Gasket
• Wiring Harness: 2.5m Relay ~ DT connector | 1.3m Relay ~ Light Switch | 1.3m Relay ~ Power Terminals



Specifications:
  • Input Power: 9-36V
  • Beam Pattern: Driving
  • Power: 30W
  • Current Draw: 1.5A @ 13.2V
  • Effective Lumen: 1,396 lm
  • Beam @ 1 Lux: 89m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: Die Cast 6063 Aluminium
  • Housing Coating: DuPont®
  • Lens Material: GE Lexan® Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Military Grade
  • Weight: 0.9Kg, Loom - 0.25Kg

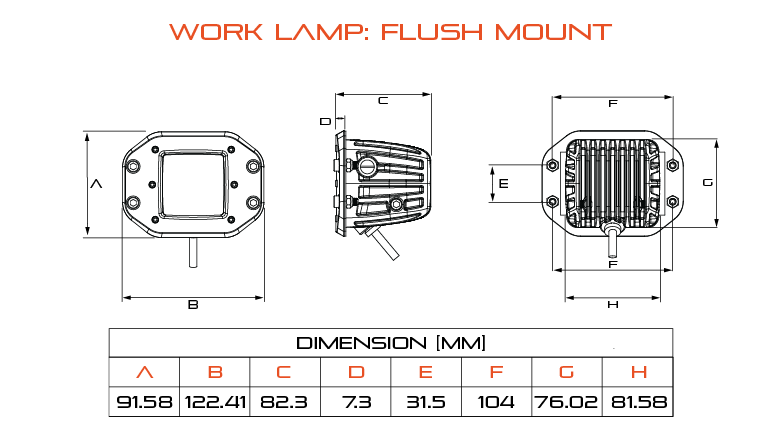

  • Body Dimensions: (L)123 x (H)92 x (W)83mm
  • Lens Dimensions: 2" x 2" (50 x 50mm)
  • Connector Type: DT Sealed
  • Operating Temp: -40ºC - 145ºC
  • Certification: CE, RoHS, RCM

















Input Power: 9-36V
Beam Pattern: Driving
Power: 30W
Current Draw: 1.5A @ 13.2V
Effective Lumen: 1,396 lm
Beam @ 1 Lux: 89m
LED Chips: Osram 5W
Colour Temp: 6000-6500K
Housing Material: Die Cast 6063 Aluminium
Housing Coating: DuPont®
Lens Material: GE Lexan® Polycarbonate
IP Rating: IP68 / IP69K
Ventilation: Military Grade
Weight: 0.9Kg, Loom - 0.25Kg
Body Dimensions: (L)123 x (H)92 x (W)83mm
Lens Dimensions: 2" x 2" (50 x 50mm)
Connector Type: DT Sealed
Operating Temp: -40ºC - 145ºC
Certification: CE, RoHS, RCM

Work Lamps:
Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can be utilised.

Twin Output Harness
